what... is Ecopark?

The Thamesmead Ecopark is a new housing project designed to show how the latest ideas about sustainable, low-energy living can be put into practice. This is not just a concept or a series of show homes - these are real homes for real people, built and run in a way that can be copied by any social housing landlord or private developer.

Many of the design features and ideas used here come from the Netherlands, where work on sustainable housing is much more advanced than in Britain. The sustainable approach affects every part of the project - from the materials used for building to the energy efficiency of the homes themselves. The energy efficiency means that the residents will use much less electricity and gas than they would in ordinary houses.

As a registered social landlord, Gallions Housing Association is also keen that Ecopark should be a real community, where the residents feel at home and are actively involved in making sustainable living a reality.

[back to top]

what... is sustainability?

Sustainability means doing something in a way that means we won't run out of natural resources - things like food, water, land and energy.

Developed countries like Britain use a lot of natural resources like oil, coal and natural gas. We are using so much of these resources that soon they will either run out, or the reserves that are left will cost too much to mine or drill for.

Sustainability is about finding ways of living that we can keep using well into the future without running out of vital resources.

Here are some examples:

• We need to use energy more efficiently - this includes using better insulation to cut down on heat loss from houses, and designing homes to make the best use of the sun's heat.
• Water conservation is also important. All of the water that comes out of your tap is good enough to drink, even the water used to flush the toilet. Treating the water to make it clean costs money and uses more resources - the more water you can save, the more resources there are to go round.
• Land is another resource that's in short supply. We need more homes for Britain's growing population. Ecopark has been built on a brownfield site - land that has been built on before, not open countryside. Using brownfield sites for housing makes the best use our precious land resources.
• More homes mean more rubbish, which also puts pressure on our land resources. Every day, Britain creates enough waste to fill Trafalgar Square to the top of Nelson's column. Most of that waste ends up in landfill sites. We need to recycle more of our waste instead of just dumping it.
• There are many cars on the road and all of them use great amounts of resources to build and run, not to mention the levels of pollution they create. Creating good public transport links is vital if we are going to live sustainably. Building homes near where people work is also a good idea.
• As well as using energy more efficiently, we need to find sustainable ways of generating power. Fossil fuels like oil and gas take millions of years to form, so once they are gone we cannot make more. But we can make electricity from sunlight, and also from the wind and waves. Making electricity in these ways can be expensive, though, and it can be hard to find places to put wind generators without people objecting to the noise they make. It's important that money and effort are put into finding ways to overcome these problems.

[back to top]

eco footprints explained

Canadian ecologist Dr William Rees has calculated the 'eco footprint' of the Earth's population - the amount of productive land each of us effectively uses. The average is 2.6 hectares per person, but people in the developed world have an eco footprint of as much as 10 hectares.

The problem is that, with the current population of six billion, the earth only has enough productive land for 2 hectares each, at the very most. With the Earth's population growing rapidly, the problem of our unsustainable way of living is becoming an urgent one.

[back to top]

eco footprints

Stand on the right-hand pad and you'll see a representation of the average 'eco footprint' of each person in the western world. Step onto the other pad to see what a sustainable eco footprint would look like – there's quite a difference.

[back to top]

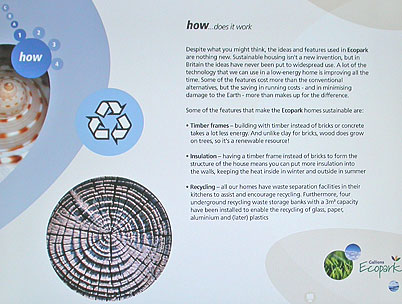

how... does it work?

Despite what you might think, the ideas and features used in Ecopark are nothing new. Sustainable housing isn't a new invention, but in Britain the ideas have never been put to widespread use.

A lot of the technology that we can use in a low-energy home is improving all the time. Some of the features cost more than the conventional alternatives, but the saving in running costs - and in minimising damage to the Earth - more than makes up for the difference.

Some of the features that make the Ecopark homes sustainable are:

• Timber frames - building with timber instead of bricks or concrete takes a lot less energy. And unlike the clay used to make bricks, wood does grow on trees, so it's a renewable resource!
• Insulation - having a timber frame instead of bricks to form the structure of the house means you can put more insulation into the walls, keeping the heat inside in winter and outside in summer.
• Advanced glazing - the windows in Ecopark's houses lose even less heat than an unfilled cavity wall, meaning two sheets of glass can hold in more warmth than two solid walls! The double-glazed units are filled with a safe but highly efficient gas called argon, which carries less energy between the panes of glass than air does. These windows are 30% more efficient than current building regulations demand.
• Condensing boilers - the heating in each of the homes is provided by a condensing gas boiler. These are much more efficient than the conventional kind, and can convert all but 2% of the energy from the gas into heat for the home.
• Solar water heating - the hot water for baths, showers and washing machines comes courtesy of the sun, using solar collectors. These are backed up by the boiler to make sure the water's always at the right temperature.
• Water-saving features - special 'spray' taps cut down on wastage, and all of the houses have water butts to collect rain for watering the garden.
• Passive solar heating - the houses facing south are designed with special 'sunspaces' that soak up the sun's heat to warm the entire building.
• Green paints - in several different colours! Ecopark's paints are based on water instead of chemical solvents. That means less damage to the environment, and no unpleasant fumes to give you a headache.

[back to top]

how... will we know if the homes really are greener?

Gallions has set up an extensive monitoring scheme to measure how effective the eco features in Ecopark's homes really are.

When the houses were finished, inspections and surveys checked features including these:

• how airtight the buildings are
• how well the ventilators resist the increased pressure when the wind blows
• how effective the insulation is at preventing the heat inside from escaping
• how well the walls stop sound travelling between rooms and houses
• the effectiveness of the solar water heating system

We also conducted interviews with our building contractors to learn from their experience, and with our residents as they moved in, to get their initial impressions.

Our residents will be involved in the long-term monitoring programme. They will install temperature logging sensors and collect the readings from different rooms in their home. They will also take part by recording meter readings to tell us how much of these resources they use:

• gas
• electricity
• water
• hot water

Questionnaires will tell us how they have used the various ventilation options in their homes, such as the windows, vents and sunspace.

We will use this information, together with details of the local weather and information collected from an ordinary, non-eco 'control' house, to work out how effective the sustainable features at Ecopark are in practice.

At the end of 2003 we will publish a series of reports, partly funded by the Housing Corporation, bringing together all these results along with conclusions and recommendations. These will be available to anybody who is interested.

[back to top]

how... did we decide what features to include?

Working with our Dutch partners, we have built Ecopark to a set of standards from a scheme called the Dutch Green Financing Model.

In the Netherlands, people who buy homes meeting these standards can apply for a special loan at a lower rate than a normal mortgage. The government gives tax incentives to lenders who provide these 'Green Loans'. The loans don't usually pay for the whole cost of the home, but they do encourage people to think about buying sustainable houses. In this way, the Dutch government has been able to increase the demand for sustainable housing without having to introduce complex laws to force developers to build them.

The Green Financing Model is based on a national standard for sustainable building in the Netherlands. To qualify for the lower-rate loan, a home must meet a set of basic requirements and also score 150 points from a list of optional standards. These are measured across several areas:

• Energy consumption
• Water use
• Materials
• Indoor environment
• Social factors (such as noise, etc)

These optional standards give architects and developers plenty of choice about the features they want to use. This helps ensure that the houses are great places to live as well as being sustainable.

[back to top]

technical information

Specifications:

• Walls - double insulation, U-value 0.25 W/m²K
• Windows - argon-filled double glazing, U-value at centre of pane 1.1 W/m²K
• Boilers - Vaillant EcoMax condensing, 83-98% efficient
• Radiators - 70/40 short DHW piping, low-temperature heating
• Sun rooms - 2-storey glazed area with east-west orientation to heat incoming air.

Neighbourhood-scale features:

• Limiting of paved area and use of half-open pavement to allow rainwater to penetrate the ground and reduce the runoff contribution to flooding.
• Rainwater is biologically treated before entering the local canal system. Street water passes through oil separators before reaching the biological treatment area.
• Water strategy aims to reduce demand for tap water and limit load on the sewage system.

[back to top]

where... does the rainwater from the Ecopark site go?

Rainwater that runs off from the Ecopark drains into a network of canals. Here, reeds and other water plants filter the water, making it cleaner and providing a habitat for rare water voles and a variety of birds and plants. Water from the canals is automatically pumped into the Thames when needed. In heavy rain, the canals can hold water back to stop too much going into the river all at once.

The land in and around Ecopark is managed by a company called Tilfen Land. They worked closely with the Environment Agency to plan and design the canal which runs beside Gallions Reach Urban Village. The project was carried out to be as sensitive as possible to the existing plant and animal life.

As a result, the Environment Agency featured the canal in its publication 'London Environmental Enhancements Case Studies', which highlights many examples of environmental best practice. Being recognised at this level by the Environment Agency is a major achievement.

Tilfen has also worked with the Environment Agency to provide high-quality amenities and wildlife habitats around Ecopark:

• Footpaths and cycle tracks for recreation
• Paths on Gallions Hill with views over the river
• Creating habitats for wildlife - banks for water voles, sandy areas for insects and birds
• Wetlands to the north and east of Ecopark - cleaning up land once used by the Royal Arsenal so it can become a wildlife habitat
• Water voles are threatened with extinction. Some have been bred in captivity at a wildlife centre in Kent, and they are now making a new home here.

[back to top]

world scales

These large balancing scales show how the more of the Earth's resources we take for ourselves now, the less we leave for future generations. Visitors can try it for themselves and see what happens...

[back to top]

wind power

Britain is a windy island, with plenty of potential for wind-generated electricity. This exhibit demonstrates how the wind can be used to generate power.

[back to top]

why... do we need to conserve resources?

One way to understand sustainability is to think of the Earth's resources like money. Imagine a child who gets £5 pocket money each week. If they spend £4.75 each time, that's sustainable. Even spending £5 a week is sustainable, as long as they never need any extra cash for a special occasion.

But if they want to spend £5.50 every week, they're in trouble. They'd have to borrow money, maybe by asking for an advance on next week's pocket money. When next week comes round, though, they've already had 50p of their £5, so they'll only get £4.50. If they still want to spend £5.50, they'll have to borrow £1 this time - and so on. As the weeks go on, they'll soon get into big problems - there'll be nothing left to borrow.

That's what we've been doing with the Earth’s resources – borrowing from the future. If we don't do something now, then perhaps your children or grandchildren will find that we've used everything up, and they have nothing to live on.

We owe it to them to start living sustainably. That's why Ecopark is here.

[back to top]

why... have we built Ecopark?

Gallions believes that we can't continue to ignore the need for sustainable living. With the Earth's population expected to reach nearly 9 billion by 2050, conserving resources is an urgent priority. We want to help more people to understand the need, and what we can all do to help meet it.

As a social landlord, low-energy sustainable housing also makes sense for our tenants. Lower energy consumption means that the Ecopark houses will cost a lot less to run than conventional houses of the same size.

Most of all, Gallions wants to show how ideas and designs that are widely accepted in the Netherlands can become part of mainstream housing in Britain. Features that are commonly used in new Dutch housing developments are still seen as something out of the ordinary here. We hope that Ecopark will help to mark the beginning of the end for that way of thinking.

Through Ecopark, we want to show that sustainable living isn't something new and cutting-edge, needing a huge effort and an immense budget. We want to demonstrate that housing projects like this one are a practical, economical reality.

[back to top]

recycling game

Are you on target with recycling? This game helps you sort out which materials in your rubbish can be recyled by throwing the coloured balls through the matching hoops.

[back to top]

the naked house

Next door to the Ecopark visitor centre is the naked house. It's called 'naked' because it's been left unfinished so visitors can experience many of the special eco features. It's these features that make this development a real step forward in sustainable housing and, just as importantly, a great place to live.

Take a look around the naked house

[back to top]

interactive exhibition

Visitors can explore the special features of Ecopark on two interactive consoles in the visitor centre.

Gallions Housing Association will be publishing the interactive exhibition as a CD-ROM in 2003. It will include the results from an extensive programme of monitoring and evaluation to study the effectiveness of the design features used in Ecopark, such as:

• A description of the methodology used in the monitoring programme
• A profile of the Naked House
• Interactive panoramas of the houses
• Feedback from tenants
• A comprehensive directory of suppliers and other contact details
• Procurement Report
• Technical Report
• Press Releases
• Information about the Dutch Green Financing Model
